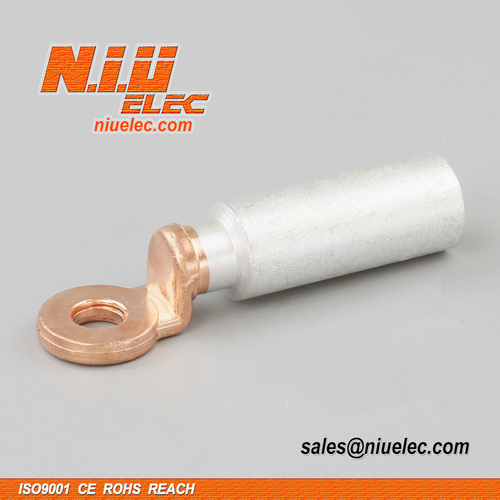

DTL-5 Forged Bimetallic Lug

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Advantages:

1)DTL-5 Forged Bimetallic Lugs come in sizes to fit cables ranging from16 mm up to500 mm. Eyelet sizes available are 6mm. 8mm.10mm.12mm.16mm and 20mm or according to customers requirements.

2)The technology of friction welding is wonderfully adopted. Therefore they have distinguishing features of strong weld intensity, good nature in electrification resistant galvanic corrosion and long service life.

3)Barrels are capped and filled with grease so as to avoid oxidation of the aluminum.

Instructions:

DTL-5 Cable Bimetallic Lug is suitable for aluminum to copper terminations.

Item No.		D	d	L	L1	W	S
DTL-5-16	10.5	16	6.5	80	40	20	4
DTL-5-25	10.5	16	7.5	80	40	20	4
DTL-5-35	10.5	16	8.5	80	40	20	4
DTL-5-50	12.8	20	9.8	90	43	25	5
DTL-5-70	12.8	20	11.5	90	43	25	5
DTL-5-95	12.8	20	13.5	90	43	25	5
DTL-5-120	12.8	25	15	112	58	30	6
DTL-5-150	12.8	25	16.5	112	58	30	6
DTL-5-185	12.8	32	18.5	122	60	35	7
DTL-5-240	12.8	32	21.5	122	60	35	7
DTL-5-300	12.8	34	23.5	125	65	35	7
DTL-5-400	17	40	26	160	90	36	7
DTL-5-500	17	40	29.5	160	90	36	7
