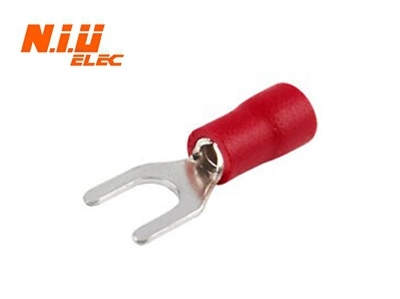

FORK SHAPE PREINSULATIED TERMINAL

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

We have gained the popularity in the industry by manufacturing and supplying excellent Fork Shape Preinsulatied Terminal. This machine is precisely engineered at our advanced production unit by using highest quality materials in compliance with quality standards of the industry. The terminal fulfills the purpose of connecting the electrical wire and finds application in the industries like marine, electrical, aviation and railway. We offer competitive price to our clients for this Fork Shape Preinsulatied Terminal.

Features:

Strong construction
Dimensional accuracy
Highly durable

WIRE RANGEA.W.G.mm2	Item No	STUD		DIMENSION INCH(mm)					1MAX	COLOUR
WIRE RANGEA.W.G.mm2	Item No	ÃƒÅ½Ã‚Â¦	HOLE	B	L	F	H	D	1MAX	COLOUR
22-16A.W.G 0.5-1.5mm2	SV1.25-3	#4	3.2	5.7	21.2	6.5	10	4.3	19A	RED
	SV1.25-3.5S	#6	3.7	5.7	21.2	6.5
	SV1.25-3.5L	#6	3.7	6.4	21.2	6.5
	SV1.25-4S	#8	4.3	6.4	21.2	6.5
	SV1.25-4M	#8	4.3	7.2	21.2	6.5
	SV1.25-4L	#8	4.3	8.1	21.2	6.5
	SV1.25-5S	#10	5.3	8.1	21.2	6.5
	SV1.25-5L	#10	5.3	9.5	21.2	6.5
	SV1.25-6S	1/4	6.5	9.5	21.2	6.5
	SV1.25-6L	1/4	6.5	12	27.2	11
	SV1.25-8	5/16	8.5	14	29	12.5
16-14A.W.G 1.5-2.5mm2	SV2-3	#4	3.2	5.7	21.2	6.5	10	4.9	27A	BLUE
	SV2-3.5S	#6	3.7	5.7	21.2	6.5
	SV2-3.5L	#6	3.7	6.4	21.2	6.5
	SV2-4S	#8	4.3	6.4	21.2	6.5
	SV2-4M	#8	4.3	7.2	21.2	6.5
	SV2-4L	#8	4.3	8.1	21.2	6.5
	SV2-5S	#10	5.3	8.1	21.2	6.5
	SV2-5L	#10	5.3	9.5	21.2	6.5
	SV2-6S	1/4	6.5	9.5	21.2	6.5
	SV2-6L	1/4	6.5	12	27.2	11
	SV2-8	5/16	8.5	14	29	12.5
14-12A.W.G 2.5-4mm2	SV3.5-4	#8	4.3	8	24.8	7	12.5	6.2	37A	BLACK
	SV3.5-5	#10	5.3	8	24.8	7
	SV3.5-6	1/4	6.4	12	28	12.1
12-10A.W.G 4-6mm2	SV5.5-4S	#8	4.3	8.3	25.2	7.5	12.5	6.7	48A	YELLOW
	SV5.5-4L	#8	4.3	9	25.2	7.5
	SV5.5-5	#10	5.3	9	25.2	7.5
	SV5.5-6S	1/4	6.5	9	25.2	7.5
	SV5.5-6L	1/4	6.5	12	31.2	7.5
	SV5.5-8	5/16	8.4	14	30	12
