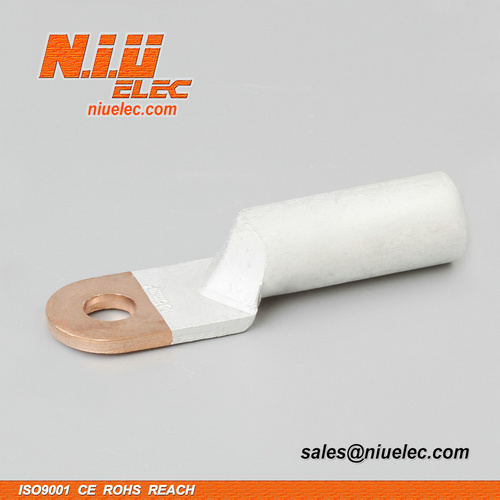

Cable Bimetallic Lug

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Advantages:

1)Alternative sizes can be made to order for approved order quantities.

2)The technology of friction welding is wonderfully adopted. Cable lugs are fully annealed to guarantee optimum ductility.

3)Therefore they have distinguishing features of strong weld intensity, good nature in electrification resistant galvanic corrosion and long service life.

Instructions:

DTL-1 Cable Bimetallic Lugs are designed for connection of aluminum conductors to coppers busses, wires and cables in order to eliminate galvanic effect produced in results of direct connection copper and aluminum in the course of wiring and power load hookup.

Item No.		D	d	L	L1	W	S
DTL-1-10	8.5	10	5.2	65	30	16	2.2
DTL-1-16	8.5	11	6.1	70	31	16	2.2
DTL-1-25	8.5	12	7.1	75	34	18	2.8
DTL-1-35	10.5	14	8.5	85	39	20.5	3
DTL-1-50	10.5	16	9.8	90	41	23	3.4
DTL-1-70	12.5	18	11.5	102	47	26	3.6
DTL-1-95	12.5	21	13.5	112	50	28	4.2
DTL-1-120	14.5	23	15	120	53	30	4.8
DTL-1-150	14.5	25	17	126	55	34	5.3
DTL-1-185	16.5	27	18.6	133	57	37	5.8
DTL-1-240	16.5	30	21.5	140	60	40	6
DTL-1-300	21	34	24	158	66	45	7
DTL-1-400	21	38	27	178	76	55	--
DTL-1-500	21	45	30	200	85	60	--
DTL-1-630	--	50	34.2	225	85	80	--
DTL-1-800	--	60	38	270	90	100	--
