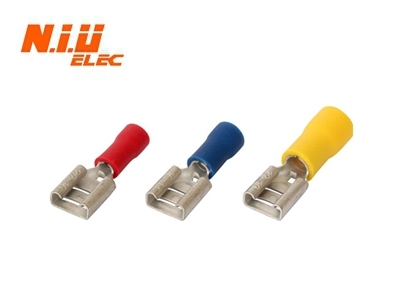

INSULATED FEMALE DISCONNECTS

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Since inception, we are engaged in manufacturing and exporting a superior quality range of Insulated Female Disconnects. Our boiler is designed by our expert professionals using best quality materials as per the industry laid quality norms. It is widely used in the electrical industry to fulfill the purpose of connecting the power supply cables. The offered Insulated Female Disconnects can be obtained in diverse specifications according to the requirement and available at an economic price.

Features:

Non corrosive
Durable design
Accurate dimension

WIRE RANGE A.W.G.MM2	ITEM NO.	SPECIFICATION	Thickness	DIMENSION INCH (mm)					1Max	COLOR
WIRE RANGE A.W.G.MM2	ITEM NO.	SPECIFICATION	Thickness	B	d	D	L	H	1Max	COLOR
22-16A.W.G. 0.5-1.5mm2	FDD 1.25-110(5)	0.5X2.8	0.3	3.8	1.7	3.8	19.0	10.0	10A	Red
	FDD 1.25-110(8)	0.8X2.8	0.3	3.8	1.7	3.8	19.0
	FDD 1.25-187(5)	0.5X4.75	0.35	5.6	1.7	3.8	19.0
	FDD 1.25-187(8)	0.8X4.75	0.35	5.6	1.7	3.8	19.0
	FDD 1.25-205	0.8X5.2	0.4	6.5	1.7	3.8	20.0
	FDD 1.25-250	0.8X6.35	0.4	7.4	1.7	3.8	21.0
16-14A.W.G. 1.5-2.5mm2	FDD 2-110(5)	0.5X2.8	0.3	3.8	2.3	4.3	19.0	10.0	15A	Blue
	FDD 2-110(8)	0.8X2.8	0.3	3.8	2.3	4.3	19.0
	FDD 2-187(5)	0.5X4.75	0.35	5.6	2.3	4.3	19.0
	FDD 2-187(8)	0.5X4.75	0.35	5.6	2.3	4.3	19.0
	FDD 2-205	0.5X5.2	0.35	6.5	2.3	4.3	20.0
	FDD 2-250	0.8X6.35	0.4	7.4	2.3	4.3	21.0
12-10A.W.G. 4-6mm 2	FDD 5.5-250	0.8X6.35	0.4	7.4	3.4	5.7	25.0	14.0	24A	Yellow
12-10A.W.G. 4-6mm 2	FDD 5.5-375	1.2X9.4	0.5	10.9	3.4	5.7	29.6	14.0	24A	Yellow
