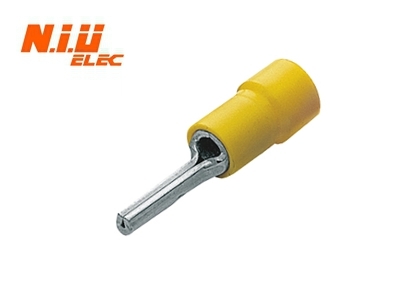

INSULATED PIN TERMINALS

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Being a customer oriented organization; we manufacture and export a premium quality of Insulated Pin Terminals. The offered terminals are demanded in the electrical industry to fulfill the demands of joining power supply cables. We manufacture these terminals under the guidance of our skilled professionals by using superior quality materials at our advanced production unit. These Insulated Pin Terminals are available in the market for our clients at an affordable price.

Features:

Excellent durability
High thermal conductivity
Longer service life

WIRE RANGE A.W.G.MM2	ITEM NO.	DIMENSION INCH (mm)				1Max	Color
WIRE RANGE A.W.G.MM2	ITEM NO.	F	L	H	D	1Max	Color
22-16 A.W.G. 0.5-1.5mm2	PTV 1.25-9	1.9	19.0	10.0	4.3	19A	Red
	PTV 1.25-10	1.9	20.0
	PTV 1.25-12	1.9	22.0
	PTV 1.25-13	1.9	23.0
	PTV 1.25-18	1.9	28.0
16-14 A.W.G. 1.5-2.5mm2	PTV 2-9	1.9	19.0	10.0	4.9	27A	Blue
	PTV 2-10	1.9	20.0
	PTV 2-12	1.9	22.0
	PTV 2-13	1.9	23.0
	PTV 2-18	1.9	28.0
14-12 A.W.G. 2.5-4mm2	PTV3.5-13	2.3	25.5	12.5	6.2	37A	Black
12-10 A.W.G.4-6mm2	PTV 5.5-13	2.8	25.5	12.5	6.7	48A	Yellow
