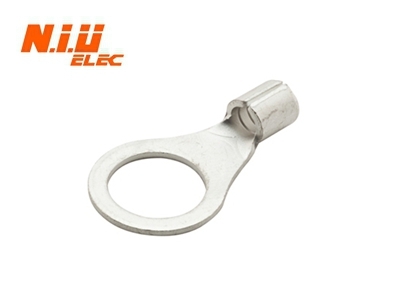

NON-INSULATED RING TERMINALS
Product Details:
X
Product Description
We have become the leading entity of the industry by manufacturing and exporting a wide range of Non-Insulated Ring Terminals. This structure is designed by our experts using finest quality materials in compliance with quality standards set by the industry. It is widely used in the industry for the making electrical connection via bolt or screw. We have facility to provide this Non-Insulated Ring Terminals for our esteemed clients at an industry leading price.
Features:
- Prolonged service life
- Non corrosive
- High strength
|
WIRE RANGE A.W.G.MM2 |
ITEM NO. |
STUD SIZE |
DIMENSION INCH (mm) |
1Max
|
||||||||
|
Æ|
Hole d2 |
B |
L |
F |
E |
DÆ|
dÆ|
|
|
|||
|
22-16 A.W.G 0.5-1.5mm2 |
RNB 1.25-3 |
#4 |
3.2 |
6.6 |
12.3 |
4.3 |
4.8 |
4.1 |
2.3 |
19A |
|
|
|
RNB 1.25-3.5S |
#6 |
3.7 |
6.6 |
12.3 |
4.3 |
|
||||||
|
RNB 1.25-3.5M |
#6 |
3.7 |
6.6 |
16.0 |
7.0 |
|
||||||
|
RNB 1.25-3.5L |
#6 |
3.7 |
8.5 |
16.8 |
7.75 |
|
||||||
|
RNB 1.25-4S |
#8 |
4.3 |
6.6 |
16.0 |
7.0 |
|
||||||
|
RNB 1.25-4L |
#8 |
4.3 |
8.5 |
16.8 |
7.75 |
|
||||||
|
RNB 1.25-5S |
#10 |
5.3 |
8.5 |
16.8 |
7.75 |
|
||||||
|
RNB 1.25-5L |
#10 |
5.3 |
9.5 |
16.8 |
7.75 |
|
||||||
|
RNB 1.25-6S |
1/4 |
6.5 |
9.5 |
16.8 |
7.75 |
|
||||||
|
RNB 1.25-6L |
1/4 |
6.4 |
11.6 |
21.8 |
11.0 |
|
||||||
|
RNB 1.25-8 |
5/16 |
8.4 |
11.6 |
21.8 |
11.0 |
|
||||||
|
RNB 1.25-10 |
3/8 |
10.5 |
13.6 |
25.5 |
13.9 |
|
||||||
|
RNB 1.25-12 |
1/2 |
13.0 |
19.2 |
30.4 |
16.0 |
|
||||||
|
16-14 A.W.G 1.5-2.5mm 2 |
RNB 2-3 |
#4 |
3.2 |
6.6 |
12.3 |
4.3 |
4.8 |
4.1 |
2.3 |
27A |
|
|
|
RNB 2-3.5S |
#6 |
3.7 |
6.6 |
12.3 |
4.3 |
|
||||||
|
RNB 2-3.5M |
#6 |
3.7 |
6.6 |
16.0 |
7.0 |
|
||||||
|
RNB 2-3.5L |
#6 |
3.7 |
8.5 |
16.8 |
7.75 |
|
||||||
|
RNB 2-4S |
#8 |
4.3 |
6.6 |
16.0 |
7.0 |
|
||||||
|
RNB 2-4L |
#8 |
4.3 |
8.5 |
16.8 |
7.75 |
|
||||||
|
RNB 2-5S |
#10 |
5.3 |
8.5 |
16.8 |
7.75 |
|
||||||
|
RNB 2-5L |
#10 |
5.3 |
9.5 |
16.8 |
7.25 |
|
||||||
|
RNB 2-6S |
#10 |
6.4 |
9.5 |
16.8 |
7.25 |
|
||||||
|
RNB 2-6L |
1/4 |
6.4 |
11.6 |
21.8 |
11.0 |
|
||||||
|
RNB 2-8 |
5/16 |
8.4 |
11.6 |
21.8 |
11.0 |
|
||||||
|
RNB 2-10 |
3/8 |
10.5 |
13.6 |
25.5 |
13.9 |
|
||||||
|
RNB 2-12 |
1/2 |
13.0 |
19.2 |
30.4 |
16.0 |
|
||||||
|
14-12 A.W.G 2.5-4mm2 |
RNB 3.5-4 |
#8 |
4.3 |
8.0 |
18.0 |
7.7 |
6.0 |
5.0 |
3.0 |
37A |
|
|
|
RNB 3.5-4 |
#10 |
5.3 |
8.0 |
18.0 |
7.7 |
|
||||||
|
RNB3.5-5L |
#10 |
5.3 |
12.0 |
21.4 |
7.7 |
|
||||||
|
RNB 3.5-6 |
1/4 |
6.5 |
12.0 |
21.4 |
7.7 |
|
||||||
|
RNB 3.5-8 |
5/16 |
8.4 |
15.0 |
27.0 |
13.5 |
|
||||||
|
RNB 3.5-10 |
3/8 |
10.5 |
15.0 |
27.0 |
13.5 |
|
||||||
|
RNB 3.5-12 |
1/2 |
13.0 |
19.2 |
31.6 |
16.0 |
|
||||||
|
12-10 A.W.G 4-6mm2 |
RNB 5.5-3.5 |
#6 |
3.7 |
7.2 |
15.7 |
5.9 |
6.8 |
5.6 |
3.4 |
48A |
|
|
|
RNB 5.5-4S |
#8 |
4.3 |
7.2 |
15.7 |
5.9 |
|
||||||
|
RNB 5.5-4L |
#8 |
4.3 |
9.5 |
19.8 |
8.3 |
|
||||||
|
RNB 5.5-5 |
#10 |
5.3 |
9.5 |
19.8 |
8.3 |
|
||||||
|
RNB 5.5-6 |
1/4 |
6.5 |
12.0 |
23.0 |
12.0 |
|
||||||
|
RNB 5.5-8 |
5/16 |
8.4 |
15.0 |
28.0 |
13.7 |
|
||||||
|
RNB 5.5-10 |
3/8 |
10.5 |
15.0 |
28.0 |
13.7 |
|
||||||
|
RNB 5.5-12 |
1/2 |
13.0 |
19.2 |
32.4 |
16.0 |
|
||||||
|
8 A.W.G 6-10mm 2 |
RNB 8-4 |
#8 |
4.3 |
8.8 |
23.8 |
9.3 |
8.5 |
7.2 |
4.5 |
62A |
|
|
|
RNB 8-5S |
#10 |
5.3 |
8.8 |
23.8 |
11.1 |
|
||||||
|
RNB 8-6S |
1/4 |
6.4 |
12.0 |
23.8 |
9.3 |
|
||||||
|
RNB 8-8 |
5/16 |
8.4 |
15.0 |
29.8 |
13.8 |
|
||||||
|
RNB 8-10 |
3/8 |
10.5 |
15.0 |
29.8 |
13.8 |
|
||||||
|
RNB 8-12 |
1/2 |
13.0 |
20.0 |
33.5 |
15.0 |
|
||||||
|
6 A.W.G 10-16mm2 |
RNB 14-4 |
#8 |
4.3 |
12.0 |
29.8 |
13.3 |
10.5 |
9.0 |
5.8 |
88A |
|
|
|
RNB 14-5 |
#10 |
5.3 |
12.0 |
29.8 |
13.3 |
|
||||||
|
RNB 14-6S |
1/4 |
6.4 |
12.0 |
29.8 |
13.3 |
|
||||||
|
RNB 14-6L |
1/4 |
6.4 |
16.0 |
32.8 |
14.5 |
|
||||||
|
RNB 14-8 |
5/16 |
8.4 |
16.0 |
32.8 |
14.5 |
|
||||||
|
RNB 14-10 |
3/8 |
10.5 |
16.0 |
32.8 |
14.5 |
|
||||||
|
RNB 14-12 |
1/2 |
13.0 |
22.0 |
41.0 |
19.5 |
|
||||||
|
4 A.W.G 16-25mm2 |
RNB 22-5S |
#10 |
5.3 |
12.2 |
33.2 |
14.5 |
12.0 |
11.5 |
7.7 |
115A |
|
|
|
RNB 22-6S |
1/4 |
6.4 |
12.2 |
33.2 |
14.5 |
|
||||||
|
RNB 22-6L |
1/4 |
6.4 |
16.5 |
33.7 |
13.5 |
|
||||||
|
RNB 22-8 |
5/16 |
8.4 |
16.5 |
33.7 |
13.5 |
|
||||||
|
RNB 22-10 |
3/8 |
10.5 |
16.5 |
33.7 |
13.5 |
|
||||||
|
RNB 22-12 |
1/2 |
13.0 |
22.0 |
42.5 |
19.5 |
|
||||||
|
24 A.W.G 25-50mm2 |
RNB 38-5 |
#10 |
5.3 |
15.3 |
39.0 |
18.3 |
14.0 |
13.3 |
9.4 |
160A |
|
|
|
RNB 38-6 |
1/4 |
6.4 |
15.3 |
39.0 |
18.3 |
|
||||||
|
RNB 38-8S |
5/16 |
8.4 |
15.3 |
39.0 |
18.3 |
|
||||||
|
RNB 38-8L |
5/16 |
8.4 |
22.0 |
42.7 |
17.7 |
|
||||||
|
RNB 38-10S |
3/8 |
10.5 |
15.3 |
39.0 |
18.3 |
|
||||||
|
RNB 38-10L |
3/8 |
10.5 |
22.0 |
42.7 |
17.7 |
|
||||||
|
RNB 38-12 |
1/2 |
13.0 |
22.0 |
42.7 |
17.7 |
|
||||||
|
1/0 A.W.G 35-50mm |
RNB 60-6 |
1/4 |
6.5 |
22.0 |
49.7 |
20.7 |
18.0 |
15.4 |
9.4 |
215A |
|
|
|
RNB 60-8 |
5/16 |
8.4 |
22.0 |
49.7 |
20.7 |
|
||||||
|
RNB 60-10 |
3/8 |
10.5 |
22.0 |
49.7 |
20.7 |
|
||||||
|
RNB 60-12 |
1/2 |
13.0 |
22.0 |
49.7 |
20.7 |
|
||||||
|
2/0 A.W.G 50-70mm2 |
RNB 70-6 |
1/4 |
6.4 |
24.0 |
51.0 |
20.0 |
19.0 |
17.5 |
13.0 |
235A |
|
|
|
RNB 70-8 |
5/16 |
8.4 |
24.0 |
51.0 |
20.0 |
|
||||||
|
RNB 70-10 |
3/8 |
10.5 |
24.0 |
51.0 |
20.0 |
|
||||||
|
RNB 70-12 |
1/2 |
13.0 |
24.0 |
51.0 |
20.0 |
|
||||||
|
3/0 A.W.G 70-95mm2 |
RNB 80-6 |
1/4 |
6.4 |
24.0 |
54.0 |
20.7 |
20.0 |
19.5 |
14.5 |
255A |
|
|
|
RNB 80-8 |
5/16 |
8.4 |
24.0 |
54.0 |
20.7 |
|
||||||
|
RNB 80-10 |
3/8 |
10.5 |
24.0 |
54.0 |
20.7 |
|
||||||
|
RNB 80-12 |
1/2 |
13.0 |
24.0 |
54.0 |
20.7 |
|
||||||
|
4/0 A.W.G 95-120mm 2 |
RNB 100-6 |
1/4 |
6.4 |
28.5 |
55.6 |
20.4 |
21.0 |
22.1 |
16.4 |
300A |
|
|
|
RNB 100-8 |
5/16 |
8.4 |
28.5 |
55.6 |
20.4 |
|
||||||
|
RNB 100-10 |
3/8 |
10.5 |
28.5 |
55.6 |
20.4 |
|
||||||
|
RNB 100-12 |
1/2 |
13.0 |
28.5 |
55.6 |
20.4 |
|
||||||
|
A.W.G 200/300MCM 120-150mm2 |
RNB 150-8 |
5/16 |
8.4 |
36.0 |
66.0 |
23.0 |
27.0 |
26.6 |
19.5 |
395A |
|
|
|
RNB 150-10 |
3/8 |
10.5 |
36.0 |
66.0 |
23.0 |
|
||||||
|
RNB 150-12 |
1/2 |
13.0 |
36.0 |
66.0 |
23.0 |
|
||||||
|
A.W.G 300/350MCM 150-185mm2 |
RNB 180-10 |
3/8 |
10.5 |
38.5 |
69.0 |
24.5 |
28.5 |
28.6 |
21.0 |
440A |
|
|
|
RNB 180-12 |
1/2 |
13.0 |
38.5 |
69.0 |
24.5 |
|
||||||
|
A.W.G 400/500MCM 185-240mm2 |
RNB 200-12 |
1/2 |
13.0 |
44.0 |
72.0 |
24.5 |
28.5 |
32.6 |
24.0 |
470A |
|
|
