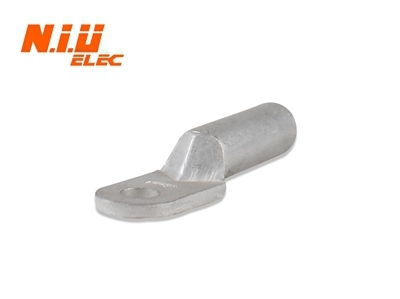

DL Aluminum Tubular Lugs

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

We have gained immense reputation in the industry as a leading manufacturer and supplier of excellent range of DL Aluminum Tubular Lugs. This machine is used in circuits and suited for joining the wires in the power distribution equipment. These are manufactured at our technically advanced production unit by using high quality aluminum in compliance with current industry standards. DL Aluminum Tubular Lugs are available for our client at reasonable prices.

Features:

Dimensional accuracy
High surface finish
Resist rust

DL Aluminum Tubular Lugs

Application
DL aluminum Tubular lugs are suitable for the conjunction of wires, cables in the distribution equipment and the electrical equipment. DL series of aluminum connecting terminals are pressed with aluminum bar (L3), DT series of copper connecting terminals with copper bar (T2).

Detail
1). Suitable for aluminum conductor
2). 99.6% pure high conductivity aluminum
3). Pre-filled with jointing compound
4). Individually packed in paper bags

Specification

Item No.		D	d	L	L1	w
DL-10	8.5	10	5.2	65	30	16
DL-16	8.5	11	6.1	70	31	16
DL-25	8.5	12	7.1	75	35	18
DL-35	10.5	14	8.5	85	38	20.5
DL-50	10.5	16	9.8	90	42	23
DL-70	12.5	18	11.5	102	47	26
DL-95	12.5	21	13.5	112	51	28
DL-120	14.5	23	15	120	53	30
DL-150	14.5	25	17	126	56	34
DL-185	16.5	27	18.6	133	58	37
DL-240	16.5	30	21.5	140	60	40
DL-300	21	34	24	165	66	50
DL-400	21	38	27	178	76	55
DL-500	21	45	30	200	85	60
DL-630	21	50	34.2	225	85	80
