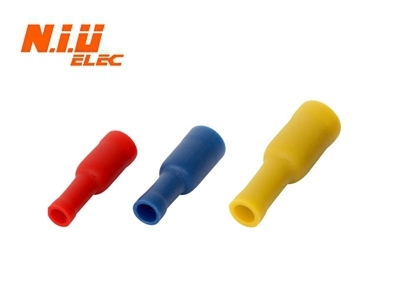

INSULATED RECEPTACLE DISCONNECTS

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Serving our clients since long, we have become a profound manufacturer and exporter of Insulated Receptacle Disconnects. These are manufactured at our production plant under the expert guidance of technocrats by using premium quality materials. These are used in electrical application to meet the requirement of connection in the distribution equipment. We check these products on the parameters of durability. We are offering this Insulated Receptacle Disconnects to our clients at an affordable price.

Features:

Corrosion resistance
High strength
Enhanced functional life

WIRE RANGE A.W.G.MM2	ITEM NO.	Thickness	DIMENSION INCH (mm)						1Max	Color
WIRE RANGE A.W.G.MM2	ITEM NO.	Thickness	bÃâ€	F	DÃâ€	dÃâ€	H	L	1Max	Color
22-16 A.G.W 0.5-1.5mm2	FRD 1.25-156	0.4	4.0	7.7	2.7	1.7	7.3	23.0	10A	Red
16-14 A.G.W 1.5-2.5mm2	FRD 2-156	0.4	4.0	7.7	3.3	2.3	7.3	23.8	15A	Blue
16-14 A.G.W 1.5-2.5mm2	FRD 2-195	0.4	5.0	8.7	3.3	2.3	7.3	23.8	15A	Blue
12-10 A.G.W 4-6mm	FRD 5.5-195	0.4	5.0	8.7	4.5	3.4	7.3	25.5	24A	Yellow
