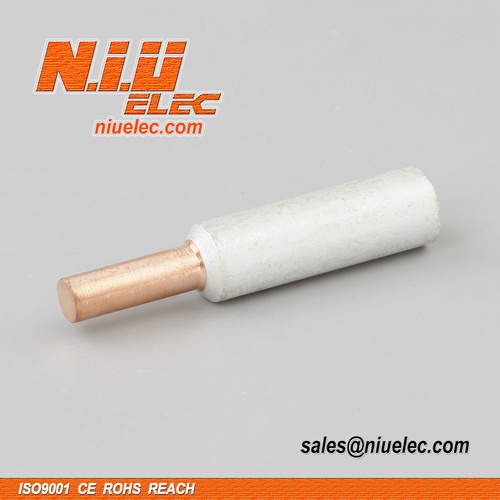

DTL-7 Pin Friction Welded Connector

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Advantages:

1)Alternative sizes can be made to order for approved order quantities.

2)The technology of friction welding is wonderfully adopted. Therefore they have distinguishing features of strong weld intensity, good nature in electrification resistant galvanic corrosion and long service life.

Instructions:

DTL-7 Pin Friction Welded Connector is suitable for screwing non-tension Al connections in Cu clamps.

Item No.	d1	D	d2	L1	L
DTL-7-16A	6.3	12	6	20	58
DTL-7-25A	7.1	12	6	20	58
DTL-7-35A	8.5	14	7	22	71
DTL-7-50A	10	16	8	25	74
DTL-7-70A	11.5	18	10	30	87
DTL-7-95A	13.5	22	12	33	91
DTL-7-120A	15	23	12	38	98
DTL-7-150A	18.5	25	12	38	108
DTL-7-185A	19	27	14	40	118
DTL-7-240A	21	32	16	40	128
