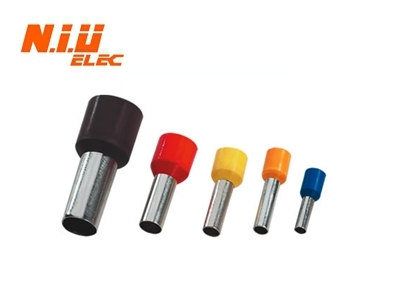

INSULATED CORD END TERMINALS

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Over the period of time, we have become a reckoned entity by betrothed in manufacturing and supplying Insulated Cord End Terminals. These terminals are used by the electrical industry for joining the power supply cables safely for hazard free operation. These are manufactured by using best quality materials in line with current industry standards at our well equipped production unit. Further, this Insulated Cord End Terminals is available for our clients at economical prices.

Features:

High durability
Can be easily installed
Sturdy structure

WIRE RANGE A.W.G.MM2	ITEM NO.	DIMENSION INCH (mm)				USING PRESSING AND CONNECTING TOOL TYPE
WIRE RANGE A.W.G.MM2	ITEM NO.	L	D	C	W	USING PRESSING AND CONNECTING TOOL TYPE
22 A.G.W 0.5mm2	EN 0508	8.0	1.3	1.0	1.7	USING 0.5 FOR
20 A.G.W 0.75mm2	EN 7508	8.0	1.5	1.2	1.9	USING 0.75 FOR
10 A.G.W 1.0mm2	EN 1008	8.0	1.7	1.4	2.2	USING 1.0 FOR
16 A.G.W 1.5mm2	EN 1508	8.0	2.0	1.7	2.5	USING 1.5 FOR
14 A.G.W 2.5mm2	EN 2508	8.0	2.6	2.3	3.3	USING 2.5 FOR
14 A.G.W 2.5mm2	EN 2510	10.0	2.6	2.3	3.3	USING 2.5 FOR
12 A.G.W 6mm2	EN 4009	9.0	3.2	2.8	3.9	USING 4.0 FOR
10 A.G.W 6mm2	EN 6012	12.0	3.9	3.5	4.7	USING 6.0 FOR
10 A.G.W 6mm2	EN 6018	18.0	3.9	3.5	4.7	USING 6.0 FOR
8 A.G.W 10mm2	EN 10-12	12.0	4.9	4.5	5.8	USING 10 FOR
	EN 10-15	15.0
	EN 10-18	18.0
6 A.G.W 16mm2	EN 16-12	12.0	6.2	5.8	7.2	USING 16 FOR
	EN 16-15	15.0
	EN 16-18	18.0
	EN 16-25	25.0
4 A.G.W 25mm2	EN 25-12	12.0	7.9	7.5	9.1	USING 25 FOR
	EN 25-16	16.0
	EN 25-18	18.0
	EN 25-30	30.0
2 A.G.W 35mm2	EN 35-16	16.0	8.7	8.3	10.2	USING 35 FOR
1/0 A.G.W 50mm2	EN 50-12	12.0	10.9	10.3	12.7	USING 35 FOR
1/0 A.G.W 50mm2	EN 50-18	18.0	10.9	10.3	12.7	USING 35 FOR
2/0 A.G.W 70mm2	EN 70-22	22.0	14.3	13.6	15.8	--
3/0 A.G.W 95mm2	EN 90-25	25.0	15.6	14.8	17.3	--
4/0 A.G.W 120mm2	EN 120-30	30.0	17.7	16.7	20.0	--
250/300 MCM A.G.W 1.5mm2 MCM	EN 150-32	32.0	20.6	19.6	23.0	--
