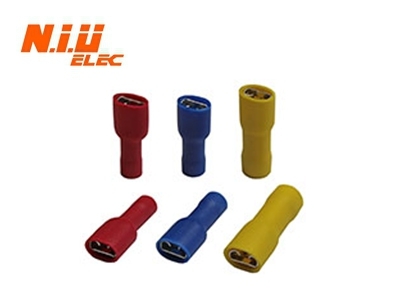

FULL VINYL INSULATED DISCONNECTS

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

We are leading the market since long by manufacturing and exporting an excellent quality range of Full Vinyl Insulated Disconnects. These find wide application in the electrical industry for its usage in the terminals. In order to manufacture these products, our experts use highest quality materials in accordance with the industry set quality norms & standards. The offered Full Vinyl Insulated Disconnects is available for our valuable clients at an affordable price.

Features:

Dimensional accuracy
Resistant to corrosion
Excellent strength

WIRE RANGE A.W.G.MM 2	ITEM NO.	NEMATAB(mm)	DIMENSION INCH (mm)					1Max
WIRE RANGE A.W.G.MM 2	ITEM NO.	NEMATAB(mm)	W	B	DÃâ€	dÃâ€	L	1Max
22-16 A.G.W 0.5-1.5mm 2	FDFD 1.25-187 (5)	0.5X4.75	7.8	5.0	4.0	1.7	20.0	10A
	FDFD 1.25-187/(8)	0.8X4.75	7.8	5.0	4.0	1.7	20.0
	FDFD 1.25-250	0.8X6.3	9.3	6.6	4.0	1.7	22.5
16-14 A.G.W 1.5-2.5mm 2	FDFD 2-187(5)	0.5X4.75	7.8	5.0	4.5	2.3	22.0	15A
16-14 A.G.W 1.5-2.5mm 2	FDFD 2-250	0.8X6.3	9.3	6.6	4.5	2.3	24.0	15A
12-10 A.G.W 4-6mm 2	FDFD 5.5-250	0.8X6.3	9.3	6.6	5.7	3.4	25.5	24A
