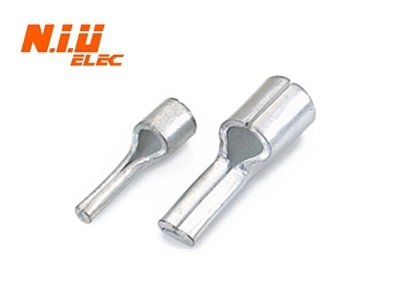

NON-INSULATED PIN TERMINALS

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Being a most trustworthy entity in the industry, we are affianced in manufacturing and supplying an extensive range of Non-Insulated Pin Terminals. These are highly demanded by the clients to terminate a connection into the terminal blocks using a stranded wire. Our terminals are designed by using best quality materials at our technically advanced manufacturing unit by maintaining the industry laid quality standards. These Non-Insulated Pin Terminals are available in the market at a pocket friendly price.

Features:

Superb strength
Rust resistance
Excellent durability

WIRE RANGE A.W.G.MM2	ITEM NO.	DIMENSION INCH (mm)
WIRE RANGE A.W.G.MM2	ITEM NO.	F	L	H	D	d
22-16 A.W.G. 0.5-1.5mm2	PTN 1.25-9	1.9	13.8	4.8	3.4	1.7
	PTN 1.25-10	1.9	14.8
	PTN 1.25-12	1.9	16.8
	PTN 1.25-13	1.9	17.8
	PTN 1.25-18	1.9	22.8
16-14 A.W.G. 1.5-2.5mm2	PTN 2-9	1.9	13.8	4.8	4.1	2.3
	PTN 2-10	1.9	14.8
	PTN 2-12	1.9	16.8
	PTN 2-13	1.9	17.8
	PTN 2-18	1.9	22.8
14-12 A.W.G. 2.5-4mm2	PTN3.5-13	2.3	19.8	6.0	5.0	3.0
12-10 A.W.G.4-6mm2	PTN 5.5-13	2.8	19.8	6.8	5.6	3.4
12-10 A.W.G.4-6mm2	PTN 5.5-18	2.8	24.8	6.8	5.6	3.4
