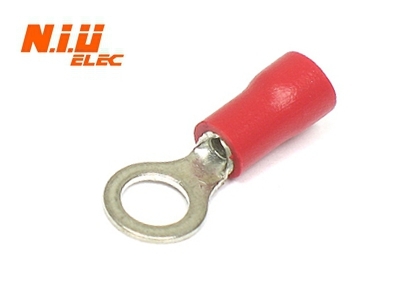

INSULATED RING TERMINALS

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

We have become the topnotch manufacturer and exporter by providing a superior quality range of Insulated Ring Terminals. These are manufactured at our advanced production unit under the guidance of experts by using high quality material in line with current industry standards. To connect different cables of the distribution equipment, these are find extensive usage in the electrical industry. Our clients can obtain Insulated Ring Terminals at reasonable prices.

Features:

Durable quality
High strength
Rugged design

WIRE RANGE A.W.G.MM2	ITEM NO.	STUD SIZE		DIMENSION INCH (mm)					1Max	Color
WIRE RANGE A.W.G.MM2	ITEM NO.	Ãâ€	Hole d2	B	L	F	H	DÃâ€	1Max	Color
22-16 A.W.G 0.5-1.5mm 2	RV 1.25-3	#4	3.2	5.7	17.8	4.95	10.0	4.3	19A	Red
	RV 1.25-3.5S	#6	3.7	5.7	17.8	4.95
	RV 1.25-3.5M	#6	3.7	6.6	20.1	6.3
	RV 1.25-3.5L	#6	3.7	7.2	21.2	7.0
	RV 1.25-4S	#8	4.3	6.6	20.1	6.3
	RV 1.25-4L	#8	4.3	8.0	21.5	7.0
	RV 1.25-5S	#10	5.3	8.0	21.5	7.0
	RV 1.25-5L	#10	5.3	9.5	23.3	7.75
	RV 1.25-6S	1/4	6.5	9.5	23.3	8.0
	RV 1.25-8	5/16	8.4	11.6	27.5	11.1
	RV 1.25-10	3/8	10.5	13.6	31.6	13.9
	RV 1.25-12	1/2	13.0	19.2	35.0	16.0
16-14 A.W.G 1.5-2.5mm 2	RV 2-3	#4	3.2	6.6	17.8	4.3	10.0	4.9	27A	Blue
	RV 2-3.5S	#6	3.7	6.6	17.8	4.3
	RV 2-3.5M	#6	3.7	6.6	21.0	7.0
	RV 2-3.5L	#6	3.7	8.5	22.5	7.75
	RV 2-4S	#8	4.3	6.6	21.0	7.0
	RV 2-4L	#8	4.3	8.5	22.5	7.25
	RV 2-5S	#10	5.3	8.5	22.5	7.25
	RV 2-5L	#10	5.3	9.5	22.5	7.25
	RV 2-6S	1/4	6.4	9.5	22.5	7.25
	RV 2-6L	1/4	6.4	12.0	27.6	11.0
	RV 2-8	5/16	8.4	12.0	27.6	11.0
	RV 2-10	3/8	10.5	13.6	30.2	13.9
	RV 2-12	1/2	13.0	19.2	35.0	16.0
14-12 A.W.G 2.5-4mm2	RV 3.5-4	#8	4.3	8.0	24.5	7.7	12.5	6.2	37A	Black
	RV 3.5-5S	#10	5.3	8.0	24.5	7.7
	RV 3.5-5L	#10	5.3	12.0	27.9	7.7
	RV 3.5-6	1/4	6.5	12.0	27.9	7.7
	RV 3.5-8	5/16	8.4	15.0	32.0	13.5
	RV 3.5-8L	3/8	10.5	15.0	32.0	13.5
	RV 3.5-10	1/2	13	19.2	38.1	16.0
12-10 A.W.G. 4-6mm 2	RV 5.5-3.5	#6	3.7	7.2	21.4	5.9	12.5	6.7	48A	Yellow
	RV 5.5-4S	#8	4.3	7.2	21.4	5.9
	RV 5.5-4L	#8	4.3	9.5	25.5	8.3
	RV 5.5-5	#10	5.3	9.5	25.5	8.3
	RV 5.5-6	1/4	6.4	12.0	31.5	13.0
	RV 5.5-8	5/16	8.4	15.0	33.7	13.7
	RV 5.5-10	3/8	10.5	15.0	33.7	13.7
	RV 5.5-12	1/2	13.0	19.2	38.1	16.0
