2CH Vehicle DVR with GPS and G-sensor

2CH Vehicle DVR with GPS and G-sensor

Product Details:

X

Product Description

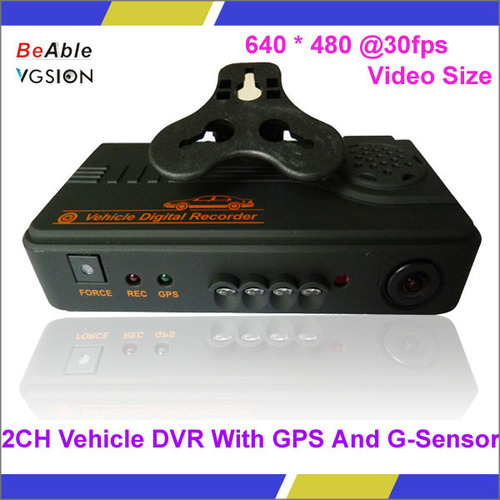

2CH Vehicle DVR with GPS and G-sensor

Model No.:VG-M201

Main Features:
  • Detailed Product Description:
  • 2 ch Vehicle DVR
  • Built in GPS
  • Built in G-Sensor
  • Built in 2 cameras
  • Support 32 gb TF Card

Technology Data

Sensor deviceForward facing lens VGA CMOS Sensor
Backward Facing lens VGA CMOS Sensor
View AngleOutside vehicle apx.120 degrees
VoltageInside vehicle apx.170 degrees
5V5%,Start 600mA,Operate 500mA(IR ON)
350mA(IR OFF)
remark Please use 5V5%,1A Cigarette lighter
adapter. The machine needs 4.8v to start.
Operating Temp-15degress+65 degress (Inside vehicle)
Silicon Power or Transcend TF card
Recording FrameForward facing lens 640x480 highest (NTSC:30fps/PAL:25fps)
Backward facing lens 640x480 highest 15fps
Auto record when power up system
Recording contentDate,time,image,sound,G-Sensor date,GPS data
Recording formatDate/time/i,age/sound/G-sensor date/GPS DATE
Recording formatSpecific format for player software
microphoneHigh sensitivity microphone
Time settingAuto-calibrating by GPS signals. If GPS is not available, the built-in clock will be used.
G-SensorInternal 3D G-SENSOR
Input deviceEmergency button: for emergency recording. Gleams in night time.
Red light: recording indicator in emergency
Green light: flashing: searching GPS Signals
Light on: GPS positioning ready
Remark: when IR is on, the LED Light will be dimmer.
