Semi-automatic Led bulp production line and assembly line

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

ETA Electronic equipment Co., Ltd. To provide professional SMT automatic production line solution, The company specializes in SMT chip mounter(New Samsung: SM471, SM481, SM120 etc); YAMAHA SMT machine (YAMAHA Chip shooter); JUKI chip mounter, Siemens SMT machine, Panasonic SMT Chip mounter, FUJI second-hand SMT machine. We are also sell printing machine, Point glue machine, Reflow soldering, Wave soldering, Automatic plug-in machines, Samsung SMT machine feida, Accessories, stencil printer, Reflow oven, flow welding, Panasert, AOI, X-ray, LED automatic die bonder etc, For communication products manufacturers, LED display, lighting manufacturers; SMT, AI materials processing, and other enterprises provide the required equipment or wiring scheme.

We not only sell machines to our customers, but also we always offer solutions for them and help them to build their own factory.

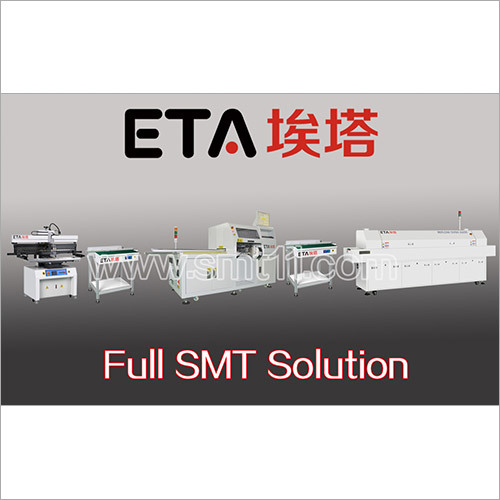

Semi-auto production line(semi-auto printer+conveyor+chip mounter+conveyor+reflow oven)

		Assembly belt line

Item	Name	Specifications

1	size	(L)10000(W)400(H) 195020mm(The length can be adjusted by customer)

2	PVC belt	Green Anti-static PVC belt(400*2mm), Seamless

3	Drive system	Taiwan motor(2HP)and 80# Retarder, inverter made by adlaspower,speed range 0-5m/min

4	Main body	4040MM aluminium product;rail by 4060MM aluminium;lantern support by 4040MM
		aluminium, Frame made by 40 x 40 aluminium product,


5	Lighting system	40W lighting,lamp by FSL, Wire is 1.5, Subsection control

		The lower line socket, both sides separate control, wire using 4 square wire, each with 2
6	Power	meters, about 1 each, trough made of galvanized plate production, the size is 60 * 80 * 1
		mm;

7	Drive roller	Made of stainless steel tube, 25mm

8	Working table	300*15mm plywood,surface with anti-fire materials

9	accessory	operation card made by 2514H aluminium product,with A4 transparent hard plastic

		LED Aging line

Item	Name	Specifications

1	size	(L)15000(W)1620(H) 165020mm(The length can be adjusted by customer)

2	Transport	trolley
	Manners


3	Drive system	Taiwan motor(2HP)and 80# Retarder, inverter made by adlaspower,speed range 0-2m/min

4	Total power	40KW

5	Voltage area	6 boosters for 6 zones,voltage range from 0 to 250V.

6	voltage regulator	6sets,each set 10KW

7	Controlling	Touch screen+PLC(digital voltmeter,PLC control trough touch screen,with 6 boosters)
	method


8	Main body	1,50502mm rectangular tube steel as frame,work-station height 1200 20mm
		2,conducting system adopt high quality stainless steel
