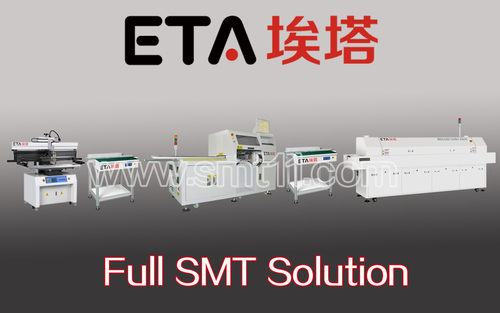

Semi-auto LED Assembly Line

Product Description

• Manual Led Assembly Line
• Semi-Auto Stencil Printer
• Model: Semi-Automatic Stencil Printer
• Brief: Smt, Semi-Auto Stencil Printer, Semi-Auto Stencil Printer, Lead-Free Reflow Oven, Reflow Soldering, Wave Soldering, Smt Equipment, Stencil Printer, Aoi, Bga Repair Stations, Wave Soldering Machines, Solder Paste, Fluxes, Bar Solder, Semi-Automatic Printer, Solder Paste,

Details
>Using Precision Guide Rail And The Import Motor To Drive The Blade Seat Conversion, Printing, And High Accuracy.
>Printing Scraper Can Rotate 45 Degrees Fixed Up, Easy Printing Stencil And Squeegee Cleaning And Replacement.
>Block Can Be Adjusted Before And After The Blade, To Choose The Right Printing Position.
>Combined With A Fixed Groove Printing Platen And Pin, Easy Installation And Adjustment, For Single, Double Sided Printing.
>School Edition Way To Move A Steel Mesh, Combined With Printed (Pcb), X, Y, Z. Convenient Fine Adjustment.
>Can Be Set To One-Way And Two-Way, A Variety Of Printing Methods.
>With The Automatic Counting Function To Facilitate The Production Of Output Statistics.
>Adjustable Blade Angle, Steel Blade, Rubber Scraper Are Suitable.
>Touch Screen With A Screen Saver Function, The Time Can Be Adjusted To Protect The Touch-Screen Life.
>Printing Speed Display, Can Be Adjusted.

Specification

• Specifications P-300 Semi-Auto Smt Stencil Printer
• Dimensions900*8900*1580Mm
• Weight300Kg
• Power Supplyac220V± 10%, Single Phose 50/60Hz,
• Air Pressure4.5-6Kg/Cm
• Power Consumption3Kw
• Transport Speedstepping Motor, 0-1500Mm/S Programmable
• Pcb Printing Size50*50-400*340Mm
• Pcb Thickness0.2-6Mm
• Stencil Size420Mm*380Mm-550Mm*650Mm
• Stencil Positioningautomatic Automatic
• Cycle Time<9S
• Accuracy± 0.05Mm
• Repeating Accuracy± 0.01Mm


Conveyor

• Model: Linkage/Inspection Conveyor
• Brief: Smt, Linkage, Smt Conveyor, Smt Linkage, Smt Inspection Conveyor

Details
> Second-Ranking Double Rack/Gear Adjustable Wide Organization, Ensure Transportation Guide Mutual Parallel;
> Machine Adopts Professional Wear-Resisting Anti-Static Belts, Special Aluminum Guide Rail, Ensure Smooth Shuttle Smooth, Transportation;
> Second-Ranking Communication Structure, Equipped With Signal Standard With Other Equipment Shuttle; Online
> Second-Ranking Optional Standard Fixtures And Process Card Board, Optional Protect Edge For Aluminum Or Anti-Static Counter.

Specification

• Specifications Conveyor
• General
• Outside Dimension(L*W*H)800/1000/1200/1500X750X900Mm
• Electric Supply Required2Phase, 220V 50/60Hz
• Weightapprox. 100Kg
• Converyor Speed Range300~2000Mm/Min
• Converyor Directionlr (Option: Rl)
• Power Consumption0.5Kw
• Max. Width Of Pcb300Mm (Option: 410Mm )
• Converyor Height900+/-20Mm
• Fixed Rail Side(With Rail)Front Rail Fixed(Option: Rear Rail Fixed)
