Product Description

Products introduction:

1.stand is made of 40*40*1.5mm painted Iron square tube

2.whole line's chain and conveying plated

3.automatic conveying system, the speed can be setted and adjustable

4.there's aluminum clasps for SOP papers, it is easy to see for the workers

5.ESD equipped for the assembly line

6.each worker's working station with a individual light and switch other application can be custom designed by the coustomer

PICTURE:

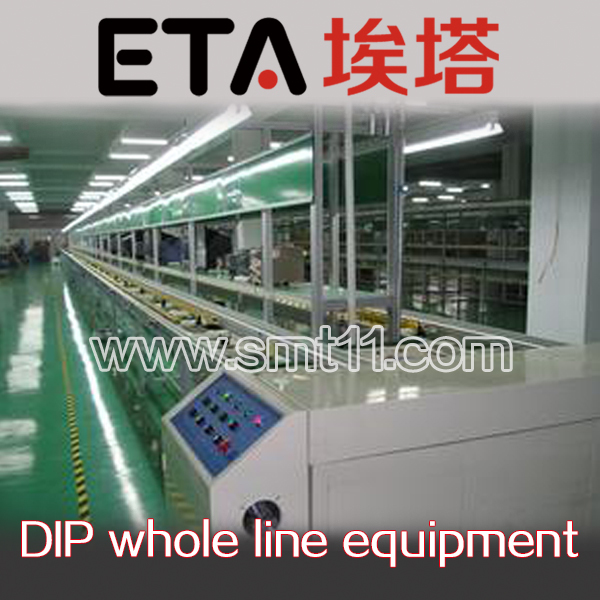

DIP insertion line(manual&automatic)

Item	Name	Specifications

1	size	(L)3000(W)600(H) 195020mm, table height:75020mm
2	Pcb width	50-350mm(adjustable)
3*	Drive system	Taiwan motor(2HP)and 80# Retarder, inverter made by adlaspower,speed range 0-5m/min
4	Main body	4040MM aluminium product;rail by 4060MM aluminium;lantern support by 4040MM
		aluminium, Frame made by 40 x 40 aluminium product,

5	Lighting system	40W lighting,lamp by FSL, Wire is 1.5, Subsection control
6	Power	The lower line socket, both sides separate control, wire using 4 square wire, each with 2
		meters, about 1 each, trough made of galvanized plate production, the size is 60 * 80 * 1 mm;

7	accessory	operation card made by 2514H aluminium product,with A4 transparent hard plastic

Welding line

Item	Name	Specifications
1	size	(L)10000(W)400(H) 195020mm(The length can be adjusted by customer)
2	PVC belt	Green Anti-static PVC belt(400*2mm), Seamless
3	Drive system	Taiwan motor(2HP)and 80# Retarder, inverter made by adlaspower,speed range 0-5m/min
4	Main body	4040MM aluminium product;rail by 4060MM aluminium;lantern support by 4040MM
		aluminium, Frame made by 40 x 40 aluminium product,

5	Lighting	40W lighting,lamp by FSL, Wire is 1.5, Subsection control
	system

6	Power	The lower line socket, both sides separate control, wire using 4 square wire, each with 2
		meters, about 1 each, trough made of galvanized plate production, the size is 60 * 80 * 1 mm;

7	Drive roller	Made of stainless steel tube, 25mm
8	Working table	300*15mm plywood,surface with anti-fire materials
9	Exhaust	The main air pipe using 200MM diameter PVC tube, with smoke hood
	system	Note: do not include motor

10	accessory	operation card made by 2514H aluminium product,with A4 transparent hard plastic

LED Aging line

Item	Name	Specifications
1	size	(L)15000(W)1620(H) 165020mm(The length can be adjusted by customer)
2	Transport	trolley
	Manners
3	Drive system	Taiwan motor(2HP)and 80# Retarder, inverter made by adlaspower,speed range 0-2m/min
4	Total power	40KW
5	Voltage area	6 boosters for 6 zones,voltage range from 0 to 250V.
6	voltage	6sets,each set 10KW
	regulator
7	Controlling	Touch screen+PLC(digital voltmeter,PLC control trough touch screen,with 6 boosters)
	method
8	Main body	1,50502mm rectangular tube steel as frame,work-station height 1200 20mm
		2,conducting system adopt high quality stainless steel
