Hybrid WDR Starlight CCD Illumination High Standard Box Camera

Hybrid WDR Starlight CCD Illumination High Standard Box Camera

Get a Price/Quote

Product Details:

Request to Call Back Send Inquiry
X

Product Description

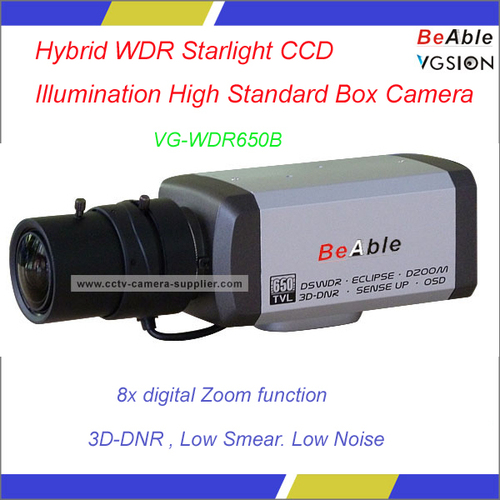

Hybrid WDR Starlight CCD Illumination High Standard Box Camera

Model No.:VG-WDR650B

Main Features:
  • High Sensitivity True D & N
  • 650 TV lines for color picture, 660 TVL for B/W picture
  • 1/3" Starlight ultra Low illumination Super Had CCD
  • 0.00003 lux mini illumination
  • 3D-DNR , Low Smear. Low Noise
  • Sense UP ,WDR, Eclipse function
  • OSD, AWB, AGC, BLC function
  • 8x digital Zoom function
  • Privacy zone, motion detect

    Technology Data

    Model NO.:VG-WDR650B
    Signal SystemNTSCPAL
    Scanning System2:1 Interlace
    Scanning Frequency(H)15.734 KHz15.625 KHz
    Scanning Frequency(V)59.94 Hz50 Hz
    Image Sensor1/3" Ultra Low Illumniation CCD
    Sync. SystemInternal
    Total Pixels Number811(H) x 508(V) 410K795(H) x 596(V) 470K
    Effective Pixels Number768(H) x 494(V) 380K752(H) x 582(V) 440K
    Horizontal Resolution650 TV Lines for color pictures
    Video Output Level1.0 Vp-p (75,Composite)
    S/N RatioMore than 52dB(AGC off, BW mode)
    Lens MountCS Mount
    Min.IlluminationColor :
    0.0003 lux (Sense-up auto, F1.2)
    0.1 lux (Sense-up OFF)
    B/W:
    0.00003 lux (Sense-up auto, F1.2)
    0.01 lux (Sense-up OFF)
    Day & Night SystemBuilt in ICR
    White BalanceATW / ANTI-ROL / PUSH / Manual
    AGCOff / Low / Middle / High
    BLCOff / Low / Middle / High
    Digital Slow ShutterOff/2x~128x Field
    OSD MenuENG / KOR / RSN / CHN / SPN / FRN
    WDR (Wide Dynamic Range)Up to 60 dB (Low/Middle/High)
    3D-DNRLevel (0~63)
    Eclipes FunctionOn/Off (16 Zones)
    Privacy ZoneOn/Off (8 Programmable Zone)
    Brightness Control0~100
    Motion detectionOn/Off (4 Programmable Zone)
    StabilizerOn/Off
    D-EffectV-Flip / Mirror / Rotate
    Picture freezOn/Off
    Electronic Shutter Speed1/60~1/90,000 Sec.1/50~1/90,000sec.
    Power Voltage12V/24V DC
    Power ConsumptionMax. 3.3W / 270mA
    Weight (Net)Approx. 324g
