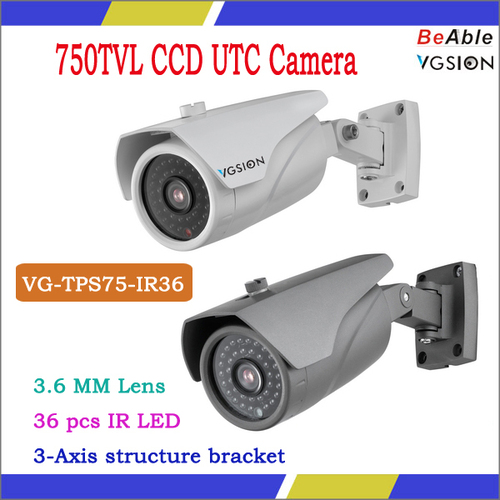

750 TVL Panasonic CCD UTC Camera

Request to Call Back Send Inquiry

Product Description

Model No.:VG-TPS75-IR36

Introduction:
This camera is with UPC (UP-The-Coax) function, OSD menu is controlled in monitor room by UTC controller.
Main Features:
1/3 Panasonic CCD & SONY 4140 DSP 750 TVL for Color Picture 0.001lux illumination D-WDR, BLC, 2DNR & Motion detect 3.6 MM Lens 3-Axis structure bracket 36 pcs IR LED
OSD is controlled in monitor room

Technology Data

Model No.	VG-TPS75-IR36
CCD Type	1/3" anasonic CCD
Resolution	750 TVL
System	PAL/NTSC
Total Pixel	PAL:1020(H)596(V)610K / NTSC:1020(H)508(V)520K
Min Illumination	Color: 0.03Lux(F1.2,50IRE,AGC ON); Black/White:0Lux(IR LED ON)
Speed Shutter	PAL :1/50 1/100,000 s NTSC: 1/60 1/100,000 s
Wide Dynamic	Digital Wide Dynamic
2D-DNR	Off/Low/Middle/High
S/N Ratio	> 50dB
White Balance	Auto White Balance
Day Night Switch	Auto/Color/ & Black/White
Image	Horizontal Image
Surrounding Brightness Compensation	Support
Auto Detection	Support
Privacy masking	Support
Language	Chinese/English
Video Output	1.0Vp-pComposite output75
Power Supply	DC 12V10%
Working Temperature	-2060
Working Humidity	Comparative Humidity >90%
IR LEDS	36 PCS
Waterproof rate	IP66
Lens	3.6 MM LENS
Bullet	Vandal proof Waterproof
