Product Description

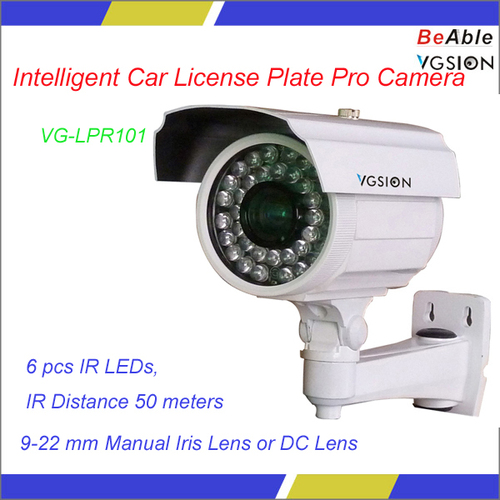

Intelligent Car License Plate Pro Camera
Model No.:VG-LPR101
Main Features: |
---|
- 1/3" Interline Color CCD
- Resolution 650 TVL for color Picture, 700 TVL for B/W picture
- Built with IR CUT
- Illumination: 0.01 Lux @ F1.4
- 36 pcs IR LEDs, IR Distance 50 meters
- Built with 1.3 Mega pixel
- 9-22 mm Manual Iris Lens or DC Lens
|
---|
|
---|
Technology Data |
---|
|
---|
Model | VG-LPR101 | Image Pick-up Device | 1/3" Color Low Lux & High Res.CCD | Effective Picture Elements | NTSC:768*494: PAL:752*582(H*V) | Horizontal Resolution | 600 TV lines | Minimum Illumination | 0.1LUX@F2.0 | S/N Ratio | More than 52dB | Auto Electronic Shutter | NTSC: 1/60s~1/100,000s;PAL:1/50s~1/110,000s | Auto Gain Control | Automatically | Auto White Balance | Color Temperature: 2500~9500k | Gama Characteristic | 0.45 | Synchronous System | Internal, Negative sync | Video Output | 1 Vp-p Composite Video / 75ohm | Power Supply | 12V DC | Power Consumption | 1000mA | Lens Furnished | LS0922DICR: 9-22mm/F1.2 CS Mount Manual Iris ICR Lens | Operating Temperature | -10to50(14 F to120 F) |
|
---|
