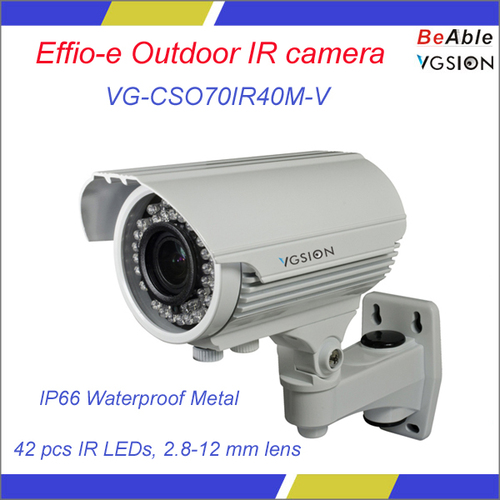

Effio-e Outdoor IR camera

Request to Call Back Send Inquiry

Product Description

Main Features:

Technology Data

Signal System	NTSC / PAL
Image Sensor	1/3"Sony SUPER HAD CCD, Powerful DSP (811/810 AK+ EFFIO-E )
Sync. System	Internal
Effective Pixels Number	NTSC : 976(H)x 494(V) PAL: 976(H)582(V)
Horizontal Resolution	700 TV Lines (BW 730TV Lines)
Video Output Level	1.0 Vp-p (75, Composite)
S/N Ratio	More than 52dB (AGC Off)
LED	42 pcs
Lens	2.8-12 mm lens (4-9 mm lens is optional)
Min. Illumination	0 lux when IR on
Day & Night	AUTO / COLOR / B/W / EXT1/ EXT2
D/N delay	0~255s Adjustable
Backlight	BLC / HLC / OFF
Auto Gain Control	Adjustable
White Balance	ATW / PUSH / USER1 / USER2 / ANTI CR/ MANUAL / PUSH LOCK
Electronic Shutter Speed	1/50 ~ 1/10,000sec
ATR ((Adaptive Tone Reproduction)	ON/OFF
Noise Reduction	2D-DNR (Y/C, Y, C, OFF)
Mirror	ON/OFF
Motion Detection	ON / OFF;(4 Zones)
Block Display	ON/OFF
Privacy Mask	ON/OFF; (8 Zones)
Mirror	ON/OFF
Power Voltage	12V DC
Weight (Goss Weight)	Approx. 0.8 kg with bracket
