Brass L Type Hinges

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

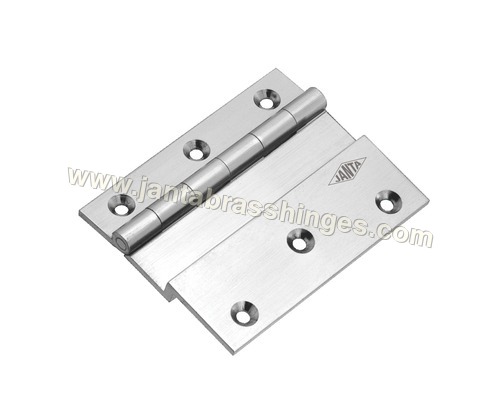

Brass L Type Hinges

The rich domain expertise and ultra-modern production unit helps us to manufacture, export and supply Brass L Type Hinges. The hinges provided by us are specially designed to provide ease of closing and opening mechanism when installed in windows and doors. Our offered hinges are manufactured by utilizing the best quality brass and avant-garde techniques in adherence with international quality standards. To meet the exact necessities of the patrons, we provide these Brass L Type Hinges in enormous sizes and designs at the most reasonable prices.

KEY FEATURES:

Robust construction
Easy installation
dedicated QC quality control
Corrosion resistance
Smooth edges
delivery on time
lower price

KEY SPECIFICATIONS:

Material : Brass
Type : Door & Window Hinges,Door Hinge
Place of Origin : Gujarat India
Size : as per your order
Suitable for : residential and apartment doors

'L' HINGES
Code No.	Size		Thickness		Length of Hinge		Width of Single Leaf				Intermediate Width		Total Width		Suggested Screw
	LXW		T		L		W				IW		TW
	Inch	mm approx	Inch	mm approx	Inch	mm approx	Inch W1	Inch W2	mm approx	mm approx	Inch	mm approx	Inch	mm approx
HL1 03209	3X1/2X1-1/2	75X12X37	3/32	2	3	75	1/2	1-1/2	12	37	---	6MM	---	---	15X6
HL1 04209	4X1/2X1-1/2	100X12X37	3/32	2	4	100	1/2	1-1/2	12	37	---	6MM	---	---	15X6
HL1 03410	3X3/4X1-3/4	75X19X44	3/32	2	3	75	3/4	1.3/4	19	44	---	8MM	---	---	15X6
HL1 04410	4X3/4X1-3/4	100X19X44	3/32	2	4	100	3/4	1.3/4	19	44	---	8MM	---	---	15X6
HL2 03209	3X1/2X1-1/2	75X12X37	3/32	2	3	75	1/2	1-1/2	12	37	---	12MM	---	---	15X6
HL2 04209	4X1/2X1-1/2	100X12X44	3/32	2	4	100	1/2	1-1/2	12	37	---	12MM	---	---	15X6
HL2 03410	3X3/4X1-3/4	75X19X44	3/32	2	3	75	3/4	1.3/4	19	44	---	12MM	---	---	15X6
HL2 04410	4X3/4X1-3/4	100X19X44	3/32	2	4	100	3/4	1.3/4	19	44	---	12MM	---	---	15X6
HL3 03410	3X3/4X1-3/4	75X19X44	3/32	2	3	75	3/4	1.3/4	19	44	---	19MM	---	---	15X6
HL3 04410	4X3/4X1-3/4	100X19X44	3/32	2	4	100	3/4	1.3/4	19	44	---	19MM	---	---	15X6
HL4 03410	3X3/4X1-3/4	75X19X44	3/32	2	3	75	3/4	1.3/4	19	44	---	25MM	---	---	15X6
HL4 04410	4X3/4X1-3/4	100X19X44	3/32	2	4	100	3/4	1.3/4	19	44	---	25MM	---	---	15X6

Other Products in 'Brass Hinges' category

Brass Railway Hinges

Send Inquiry

Brass W Hinges

Send Inquiry

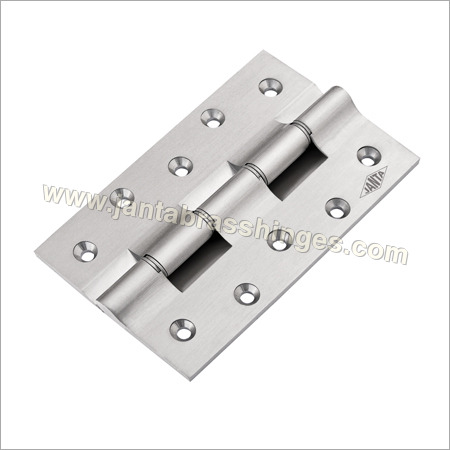

Door Hinges

Send Inquiry

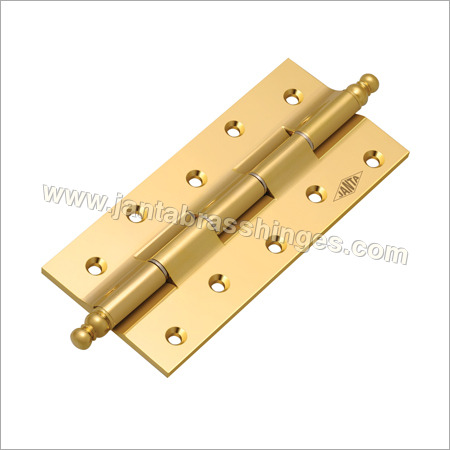

Brass Door Hinges
