Brass Bearing Hinge
Product Details:
X
Product Description

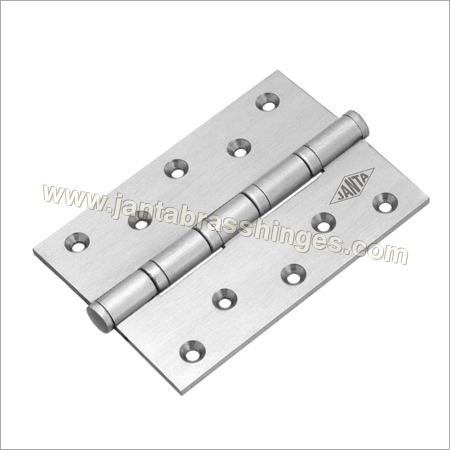

Brass Bearing Hinge
To accomplish the variegated demands of the international market, we manufacture, export and supply Brass Bearing Hinge. Find wide installation places in kitchen cabinets, furniture, boxes and doors and windows, these hinges are designed to attach the products with rigid structures. The provided hinges are manufactured in line with international quality standards using quality-approved stainless steel and pioneering methodology. Client can purchase these Brass Bearing Hinge from us in several designs, finishes and sizes at an economical price range.
KEY FEATURES:
- High strength
- Easy to install
- Durable
- Robust construction
- Smoothly and silently moving
KEY SPECIFICATIONS:
- Material : Brass
- Type : Door & Window Hinges
- Brand Name : JSC
- Place of Origin : Gujarat India
- Size : as per your Requirement
- General usage : All kinds of wooden gates and room doors
| BEARING HINGES | |||||||||||||
| Code No. | Size | Thickness | Length of Hinge | 200Width of Single Lea125f 150 | Diameter of Barrel | Total Width | Suggested Screw | ||||||
|
| LXW | T | L | W | D | TW |
| ||||||
|
| Inch | mm approx | Inch | mm approx | Inch | mm approx | Inch | mm approx | Inch | mm approx | Inch | mm approx |
|
| HBR 03133 | 3X2-1/2X3MM | - | 1/8 | 3 | 3 | 75 | 1 | 25 | 1/2 | 12 | 2-1/2 | 62 | 25X8 |
| HBR 04143 | 4X3X3MM | - | 1/8 | 3 | 4 | 100 | 1-1/4 | 31 | 1/2 | 12 | 3 | 75 | 25X8 |
| HBR 05143 | 5X3X3MM | - | 1/8 | 3 | 5 | 125 | 1-1/4 | 31 | 1/2 | 12 | 3 | 75 | 25X8 |
| HBR 06143 | 6X3X3MM | - | 1/8 | 3 | 6 | 150 | 1-1/4 | 31 | 1/2 | 12 | 3 | 75 | 25X8 |
| HBR 04144 | 4X3X4MM | - | 5/32 | 4 | 4 | 100 | 1-1/4 | 31 | 1/2 | 12 | 3 | 75 | 25X8 |
| HBR 05144 | 5X3X4MM | - | 5/32 | 4 | 5 | 125 | 1-1/4 | 31 | 1/2 | 12 | 3 | 75 | 25X8 |
| HBR06144 | 6X3X4MM | - | 5/32 | 4 | 6 | 150 | 1-1/4 | 31 | 1/2 | 12 | 3 | 75 | 25X8 |
| HBR 04154 | 4X3-1/2X4MM | - | 5/32 | 4 | 4 | 100 | 1-1/2 | 37 | 1/2 | 12 | 3-1/2 | 87 | 25X8 |
| HBR 05154 | 5X3-1/2X4MM | - | 5/32 | 4 | 5 | 125 | 1-1/2 | 37 | 1/2 | 12 | 3-1/2 | 87 | 25X8 |
| HBR 06154 | 6X3-1/2X4MM | - | 5/32 | 4 | 6 | 150 | 1-1/2 | 37 | 1/2 | 12 | 3-1/2 | 87 | 25X8 |
| HBR 08154 | 8X3-1/2X4MM | - | 5/32 | 4 | 8 | 200 | 1-1/2 | 37 | 1/2 | 12 | 3-1/2 | 87 | 25X8 |
| HBR 04145 | 4X3X5MM | - | 3/16 | 5 | 4 | 100 | 1-1/4 | 31 | 1/2 | 12 | 3 | 75 | 35X9 |
| HBR 05145 | 5X3X5MM | - | 3/16 | 5 | 5 | 125 | 1-1/4 | 31 | 1/2 | 12 | 3 | 75 | 35X9 |
| HBR 06145 | 6X3X5MM | - | 3/16 | 5 | 6 | 150 | 1-1/4 | 31 | 1/2 | 12 | 3 | 75 | 35X9 |
| HBR 08145 | 8X3X5MM | - | 3/16 | 5 | 8 | 200 | 1-1/4 | 31 | 1/2 | 12 | 3 | 75 | 35X9 |
| HBR 04155 | 4X3-1/2X5MM | - | 3/16 | 5 | 4 | 100 | 1-1/2 | 37 | 1/2 | 12 | 3-1/2 | 87 | 35X9 |
| HBR 05155 | 5X3-1/2X5MM | - | 3/16 | 5 | 5 | 125 | 1-1/2 | 37 | 1/2 | 12 | 3-1/2 | 87 | 35X9 |
| HBR 06155 | 6X3-1/2X5MM | - | 3/16 | 5 | 6 | 150 | 1-1/2 | 37 | 1/2 | 12 | 3-1/2 | 87 | 35X9 |
| HBR 08155 | 8X3-1/2X5MM | - | 3/16 | 5 | 8 | 200 | 1-1/2 | 37 | 1/2 | 12 | 3-1/2 | 87 | 35X9 |
| HBR 05165 | 5X4X5MM | - | 3/16 | 5 | 5 | 125 | 1-3/4 | 43 | 1/2 | 12 | 4 | 100 | 35X9 |
| HBR 06165 | 6X4X5MM | - | 3/16 | 5 | 6 | 150 | 1-3/4 | 43 | 1/2 | 12 | 4 | 100 | 35X9 |
| HBR 08165 | 8X4X5MM | - | 3/16 | 5 | 8 | 200 | 1-3/4 | 43 | 1/2 | 12 | 4 | 100 | 35X9 |
