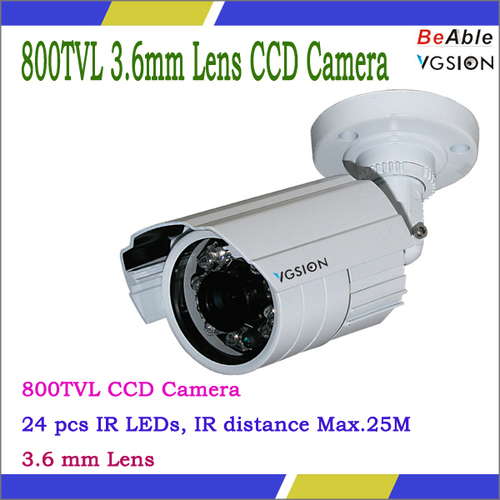

800 TVL 3.6 mm Lens CCD Camera

800 TVL 3.6 mm Lens CCD Camera

Product Details:

X

Product Description

800 TVL 3.6 mm Lens CCD Camera

Model No.:VG-ASO80-IR24

Main Features:

  • 800 TVL Ultra High Resolution
  • SWDR/Digital slow shutter
  • 2D/3D Digital Noise Reduction
  • Demist /BLC/ HLC
  • Motion detect / Privacy Msk
  • 256x Digital Zoom
  • Intelligent IR fucntion 24 pcs IR LEDs, IR distance Max.25M
  • 3.6 mm Lens



Technology Data

Model No.VG-ASO80-IR24
Image Device 1/3" Sony Exview HAD CCD II
picture ElementsNTSC: 976(H) * 494(V); PAL: 976(H) *582(V)
Sync.Systeminternal
Horizontal Resolution800 TVL
Minimum illumination0.01lux @ F1.0
Signal to Noise Ratiomore than 54db (AGC OFF)
White BalanceATW
Electronic ShutterNTSC: 1/60s~1/100,000s ; PAL: 1/50s~1/100,000s
Gamma0.45
Digital slow shutterAuto x2...x256 1/50...1/100000
Digital DemistAuto / High / Middle / Low
Motion Detection16 Areas
Privacy Mask8 Zones
OSD DisplayEnglish & Russian
DNR3D / 2D
Day /NightAuto / BW / Color / EXT
BLCAuto / High / Middle / Low
HLCHigh / Middle / Low
Video Out1 Vp-p Composite Video / 75
Power SupplyDC12V1V
Power Consumption250mA
Operating Temperature-20 degrees to 55 degrees
Standard Lens 3.6 mm lens
IR LEDs24 pcs
Waterproof RateIP66 outdoor use
Color Silver & white are optional
